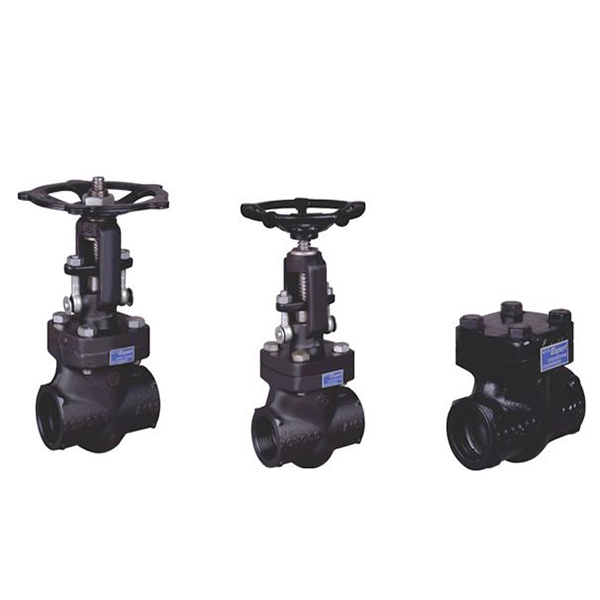

FORGED STEEL VALVES

EXPERT make Forged Gate Valves are used when the need exist for a device that allows an interruption or cut off the flow of a fluid. Gate Valves are not to be used for flow modulation. The valve should remain either fully open or fully closed. Installation of a Gate Valve is independent of the flow direction.

The Globe Valves are primarily used to modulate or regulate the volume of the flow.A Globe Valve is not recommended when a continuous full flow of fluid is required due to the high pressure drop inherent to the design of a Globe Valve. This type of valve should always be installed such that flow intake enters through the base of the valve seat.

Check valves are generally used to protect pumps or similar equipment, allowing the flow only in one direction and preventing flow reversal due to back pressure. Metal seated check valves may not provide drop tight sealing when used in gas system or fluid system with low back flow pressure.

Gate | Globe Valve

Design Std. : API 602 I BS EN ISO 15761

Testing Std. : API 598

• Outside screw and yoke type bolted bonnet construction
• Body and bonnet made from quality forgings.
• Easy access to stuffing box.
• Self-aligning gland and follower.
• Accurately machined gate/plug and seating surfaces to assure leak tightness.
• Streamlined flow passages to minimise pressure losses and erosion.
• Back seating arrangement provided to bonnet.

Check Valve

Design Std. : API 602 I BS EN ISO 15761

Testing Std. : API 598

• Uniquely designed piston lift check valve incorporating self cushioning effect.
• Taper Plug type disc and shoulder seated renewable seat ring for positive Seating and leak tightness.
• Guided piston assuring accurate return to seat ring to achieve leak tightness.
• Streamlined flow passages designed to minimize pressure losses and erosion.Long cycle life of bellow (Min. 10,000 Cycles)

Typical Applications Are

Refineries | Petrochemicals Industries | Fertilizer Plants | Thermal Power Stations | Other Processing Industries.

Size Ranges

#800	DN 40 up to DN 800

Technical Data | Design Features

Design Standard	API 602 I BS EN ISO 15761
Testing Standard	API598
Face to Face Dimensions	Manufacturer Std
End Connection	Socket end, Screwed end
Material	ASTM A105 / ASTM A182 Gr.F304 / F316

Valves can also be offered with IBR certification.
