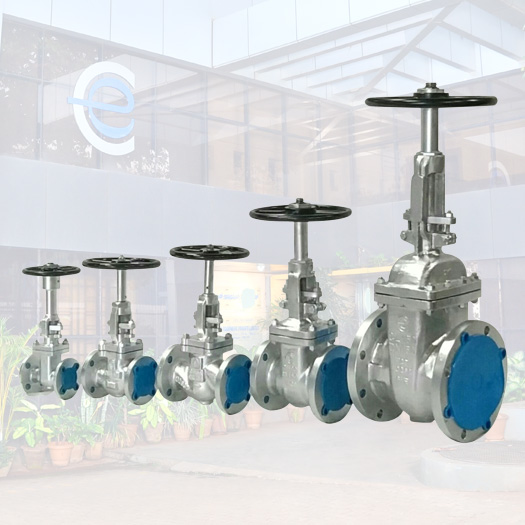

Gate,Globe,Check Valves

Gate,Globe,Check Valves

Complies to API-600, 65-1873, BS-1868

Size
:15mm to 600mm
Type
: Gate, Globe, Check
Material
: WCB, CF8, CF8M, CF3, CF3m, WC6, WC9
Ends
: Flanged
Rating
: Class 150, 300, 600
Operation
: Manual, Gear, Pneumatic or Electric Actuator
Specials
: Jacketed Construction, Extended Bonnet

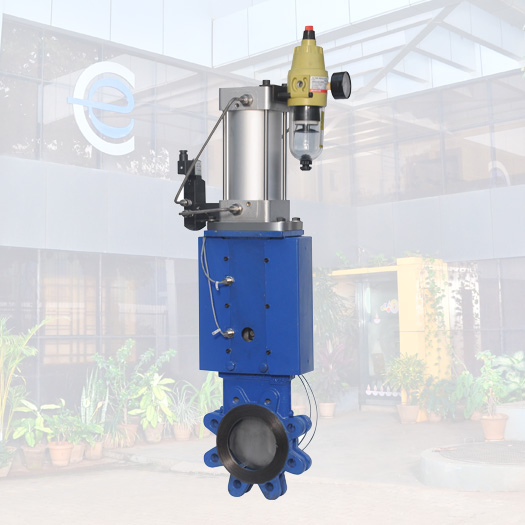

Knife Edge Gate Valves

Knife Edge Gate Valves

Complies to MSS-SP81

Size
: 50mm to 800mm
Type
: Uni – directional / Bi- directional
Material
: CI, DI, WCB, CF8, CF8M, CG3M, CF3M
Ends
:Wafer, Lugged
Operation
: Hand-wheel, Chain- wheel, Gear, Lever, Pneumatic or Electric Actuator
Specials
: Extended Stem, Closed Bonnet, Deflector cone, Soft seated, Purge connection
Testing
: As per MSS – SP 81

Top

Diaphragm Valves

Diaphragm Valves

Complies to MSS-SP 117/BS-1873

Size
: 20mm to 300mm
Type
: Weir
Material
: CI, WCB, CF8, CF8M, CF3M
Lining
: Ebonite/ Synthetic Rubber
Diaphragm
: Neoprene/ Synthetic Rubber
Ends
: Flanges
Specials
: Sealed Bonnet, Extended Stem
Operation
: Manual/ Pneumatic Actuator
Testing
: As per BS EN 1226

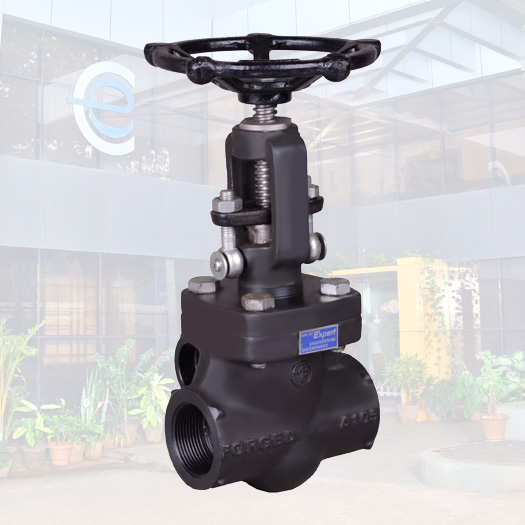

Forged Steel Valves

Forged Steel Valves

Complies to API – 602, BS EN 15761

Size
: 15mm to 50mm
Type
: Gate, Globe, Check
Material
: A105, F304, F316, F11, F22
Ends
: Screwed, Socket Weld, Butt weld
Rating
:Class 800, 1500
Specials
: Extended Bonnet
Testing
: As per API 598/ BS EN 12266

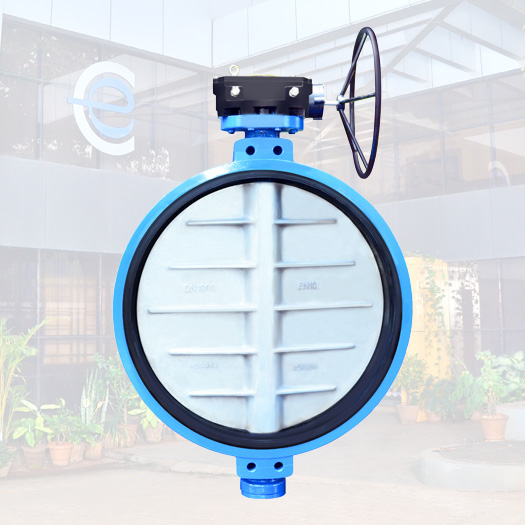

Butterfly Valves

Butterfly Valves

Complies to BE EN – 593/ IS – 13095/ API 609

Size
: 50mm to 800mm
Type
: Wafer type resilient seated
Material
: CI, DI < WCB, CF8, CF8M
Ends
: Wafer
Rating
:PN 10/ PN 16
Operation
: Lever, Gear Box, Pneumatic, Electric Actuator
Testing
: As per API 598/ BS EN 12266

Top

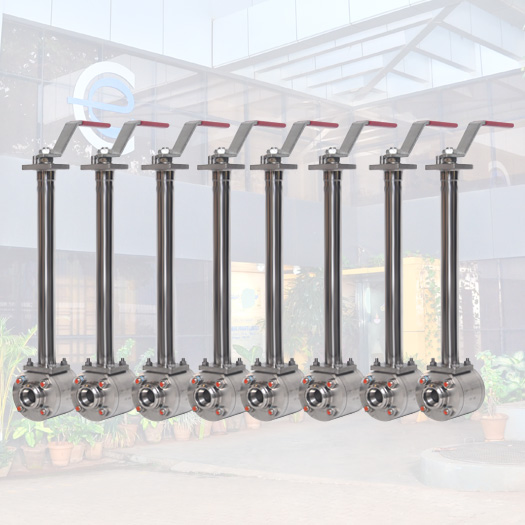

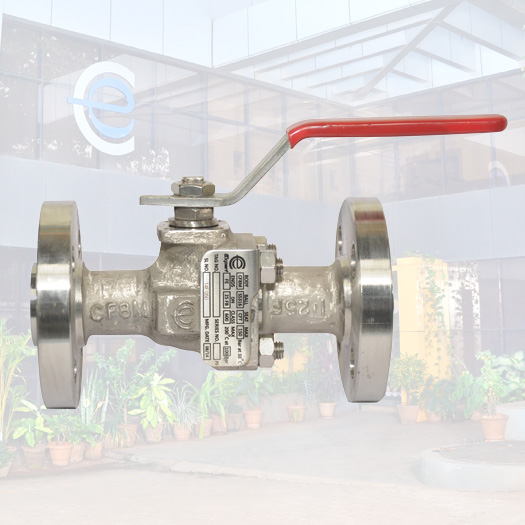

Ball Valves

>Ball Valves

Complies to BS EN ISO 17292

Size
: 15mm to 250mm
Type
: 2 way / 3 way (Full port/ Reduced Port)
Material
: A105, WCB, CF8, CF8M
Seat
: PTFE, RPTFE (CFT), PEEK, Metal
Ratings
: Class 150, 300, 800
Ends
: Screwed, Socket weld, Butt weld, Flanged
Operation
: Lever, Gear, Pneumatic & Electric Actuator
Testing
: As per API 598/ BS EN 12266

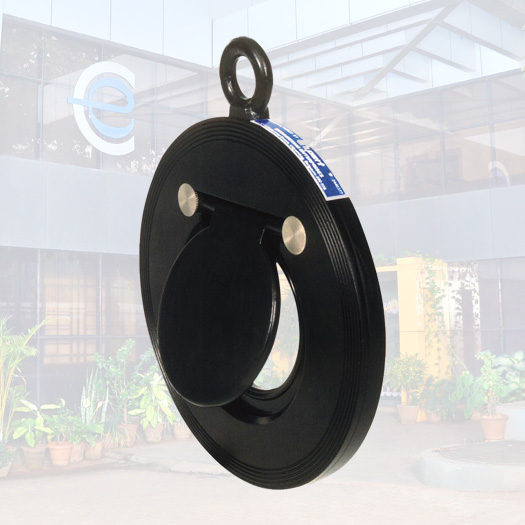

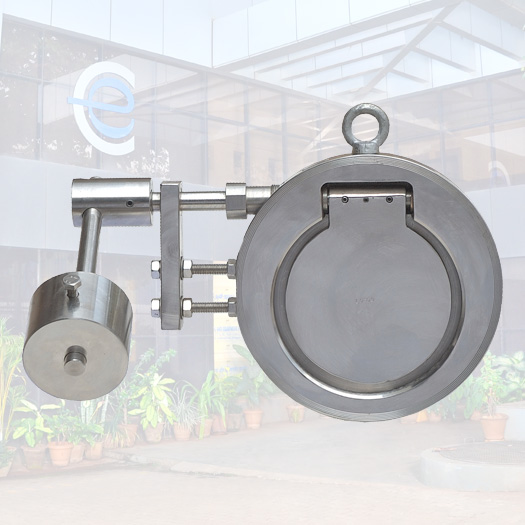

Wafer Check Valves

Wafer Check Valves

Complies to API 6D

Size
: 25mm to 1000mm
Type
: Eccentric mounted disc
Material
: CI, DI, WCB, CF8, CF8M, CF3, CF3M
Seat
: Nitrile, EPDM, Viton, Silicon, PTFE
Ends
: Wafer
Special
: Dashpot Arrangement
Testing
: As per API 598

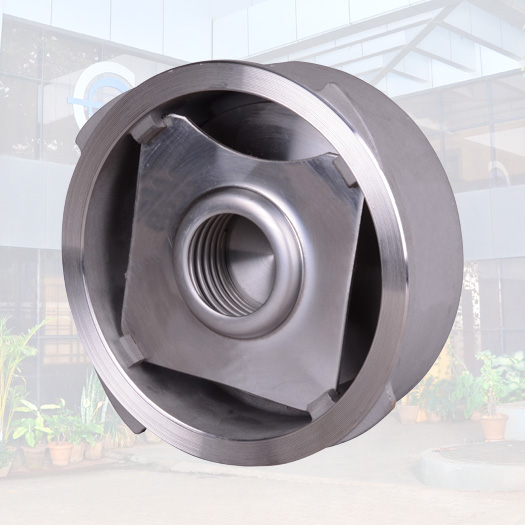

Non-Slam Check Valve

Non-Slam Check Valves

Complies to Expert’s Specification

Size
: 15mm to 150mm
Type
: Non – Slam
Material
: CF8M, CF3M
Seat
: Metallic or Soft Seat
Ends
: Wafer
Rating
: Class 150, 300, PN -40
Testing
: As per API 598

Top

Non-Return Valves

Non-Return Check Valves

Complies to IS – 5312

Size
: 50mm to 600mm
Type
: Swing Check
Material
: CI
Specials
: By- pass arrangement, Counter weight/ Hydraulic Dashpot Arrangement

Foot Valve

Foot Valves

Complies to IS- 4038

Size
: 50mm to 500mm
Type
: Swing Check
Material
: WCB, CF8, CF8M
Ends
: Flanged

Sluice Gate valves

Sluice Gate Valves

Complies to IS – 14846

Size
: 50mm to 300mm
Type
: Non- rising spindle
Material
: CI
Ends
: Flanged
Option
: Rising Spindle
Special
: Gear Box Operation
